2RU Fiber Termination Patch/Splice Panel

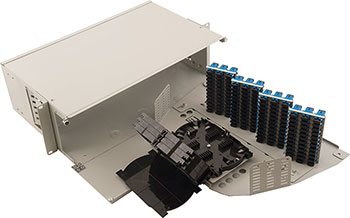

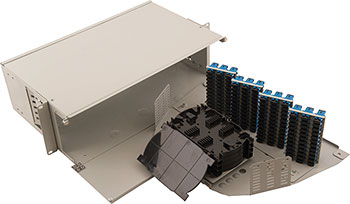

Alfafonet offers an innovative, high density swing panel has been designed to accept up to 96 fibres housed within a 2RU space. The tray fully manages the incoming fibres, pigtails and splices. The panel swing can pivot by up to 120° to allow easy access during installation or rework with no disturbance of the existing cable or fibres. Angled adaptors route exiting patch cords directly into the cabinet side management. The panel can be assembled to swing in either direction, facilitating cable entry from either side.

Features - Swing tray gives full access to adaptors and fibres whilst managing incoming cable length - Angled adaptor plates direct patch cords to side management behind openable front label plate - Suitable for up to 4 incoming cables - Tray can be assembly left or right handed, and recessed or set forward to accommodate different racks - Accepts loose tube, distribution and pre-terminated cables. - Optional splice tray kit for on site conversion to patch and splice panel		Specifications - Cold rolled steel - Durable textured powder coat finish available in black or white - Universal 19/21" EIA/TIA rack compatibility - Standard density: up to 48 fiber, High density: up to 96 fiber - Front and back side mounting options - Standard cable stub location is leftside - Optional cable stub location is rear
