Termination Boxes / TB-X100 & TB-Y24 Termination Boxes

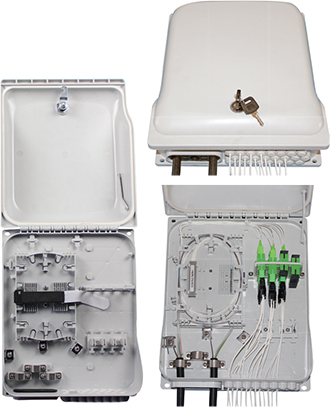

TB-Y24 Termination Box

Multipurpose fiber optic distribution-termination box TB-Y24 is used to provide a flexible platform to address the multitude of applications that exist in residential and commercial FTTx installations. Can be deliver with pre-installed SC adaptors. Easy to install and is capable of being mounted directly to standard electrical junction boxes or directly to wall. The box interior can be configured to address slack storage, splicing, cross connect, hardened adaptor applications or any combination. The Termination box kit includes all the necessary accessories–parts for complete box installation.

Features
- Outdoor use
- Designed for Wall and Pole mount applications
- Safety lock
- Available only for SC adaptors (up to 24 Simplex SC adaptors)
- IP 65
- Accepts loose tube, distribution cables
- Bend radius protection
- Rugged and durable construction for long term reliability (UV resistance)
- Resistance to vibration and shock
- Door with secure mechanism
- Can accommodate up to 4 pieces 1x8 or 1x16 PLC Splitter
- Up to 24 drop cables
- Design for small and medium volumes of fiber optic cables
- Whole front operation
- Convenient for expansion of capacity
- Re-usable
- Sheath retention & central strength member termination system included
- ROHS compliance


  TB-X100 & TB-Y24 Termination Boxes Pdf View
  TB-X100 & TB-Y24 Termination Boxes Pdf Download
