Termination Boxes / TB-X48B & TB-X50 Termination Boxes

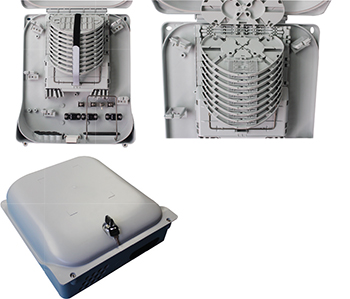

TB-X48B Termination Box
Features
- Outdoor use
- Designed for Wall and Pole mount applications
- Safety lock
- IP 65
- Accepts loose tube, distribution cables
- Bend radius protection
- Rugged and durable construction for long term reliability (UV resistance)
- Resistance to vibration and shock
- Door with secure mechanism
- Can accommodate up to many pieces 1 x 8 or 1 x 16 PLC Splitter
- Up to 48 drop cables
- Design for small and medium volumes of fiber optic cables
- Max. 120 fibers(10 pcs of SE trays ) Max. 80 fibers(20 pcs of SC trays )

Applications
Telecommunications Networks
FTTH Access Networks
CATV Networks
Local Area Networks
Data communication Networks
Outdoor Applications

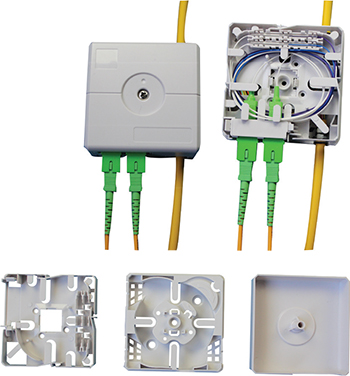

TB-X50 Termination Box

The TB-X50 is a small size indoor fiber distribution box to allow to break out fibers from a riser cable to individual drop cable that bring the fiber from this point to the living units of an MDU. The TB-X50 is designed for riser cables that allow access through a small window cut or incision. For cable constructions that require larger window cuts, fiber overlength can be stored in the base module. To connect the drop fibers to the riser fibers both splices and connector can be used. The splice splice capacity of the TB-X50 splice module is 4 splices.

Features
- Very compact enclosure with dimensions (WxHxD): 80mm x 80mm x 35mm for
- integration into small sized floor boxes
- Window cuts as small as 50mm possible with specific cable constructions such as the Mini-breakout cable
- Drop cables can be directed to 4 different sides by rotating the splice module on the base module
- Free breathing enclosure for indoor use
- Front accessible
- Wrap around riser cable installation
- Not required to cut loop-through fibers from riser cable
- Can hold 4 LC connectors or 2 SC connectors
- Compatible with mechanical splice, heat shrink protectors in
the same splice holder
- Drop cable diameter up to 5mm
- Main cable diameter up to 10,5mm


  TB-X48B & TB-X50 Termination Boxes Pdf View
  TB-X48B & TB-X50 Termination Boxes Pdf Download
