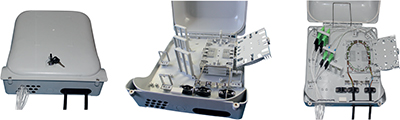

Termination Boxes / TB-X48A Termination Boxes

Features
- Up to 48 drop cables
- Up to 54 Simplex SC adaptors
- Can accommodate up to 6 pieces 1 x 8, 1 x 16 or 1 x 32 PLC Splitter
- Maximum capacity is 144F(6 trays)
- The maximum capacity of splice trays is 24 fibers
- The oval port is for 1 loop cable or 2 cables with max Ø 20 mm
- The reserved port is for cables with max Ø 18 mm
- The twelve ports with diameter Ø 14 mm, each port can hold 4 drop cables
- Bending radius > 30mm
- Outdoor use(IP 65)
- Designed for Wall and Pole mount applications
- Safety lock
- Rugged and durable construction for long term reliability (UV resistance)
- Design for small and medium volumes of fiber optic cables
- Re-usable
- ROHS compliance
- Dimensions 398 mm x 327 mm x 118 mm (L x W x H)


  TB-X48A Termination Boxes Pdf View
  TB-X48A Termination Boxes Pdf Download
