Termination Boxes / TB-X08 & TB-X12 Termination Boxes

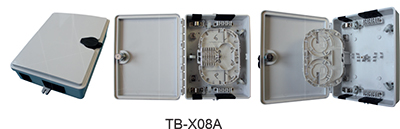

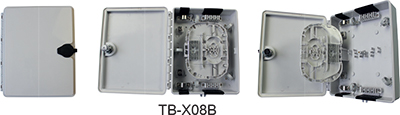

TB-X08 Termination Box
Features
- Compact design (260 x 195 x 63.5 mm)
- Free breathing box for indoor use
- In-line and butt configuration possible for main cable
- Wrap around cable seals for main cable and drops
- Not required to cut loop-through fibers from riser cable
- Window cuts as small as 70 mm possible with certain cable constructions
- Compatible with mechanical splice, and heat shrink protective sleeves
- LSZH material
- Transient free customer provisioning
- Drop cables are terminated individually
- Separate storage of un-connected fibers from spliced drop fibers
- Possibility to integrate PON splitters
- Main cable up to 15 mm diameter, Drop cable up to 3 mm diameter
- Easy drop cable termination on strain relief device

Applications
- Wall Mounting and Pole Mounting

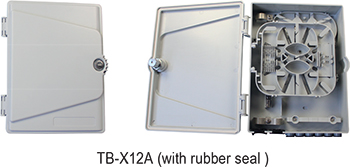

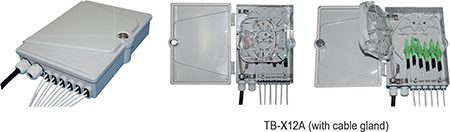

TB-X12 Termination Box
Features
- Up to 12 drop cables
- Up to 12 Simplex SC adaptors
- Can accommodate 1 x 8 ,1 x 4 PLC Splitter
- Maximum capacity is 24F
- 2 main ports is for 1 loop cable or 2 cables with max Ø 12 mm.
- The reserved port is for cables with max Ø 12mm
- The 12 small ports, each port can hold 1 drop cable
- Bending radius > 30mm
- Outdoor use(IP 65)
- Designed for Wall and Pole mount applications
- Safety lock
- Rugged and durable construction for long term reliability (UV resistance)
- Design for small and medium volumes of fiber optic cables
- Re-usable
- ROHS compliance

  TB-X08 & TB-X12 Termination Boxes Pdf View
  TB-X08 & TB-X12 Termination Boxes Pdf Download
