Termination Boxes / TB-C01 & TB-X04 Termination Boxes

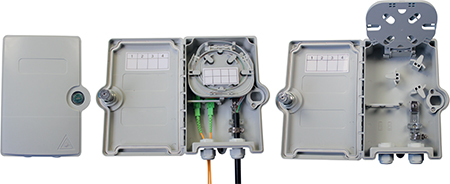

TB-C01 Termination Box
Features
- Construction-lightweight plastic offers strength and
resistance to chemical and U.V attack
- Wall mounting or pole mounting
- Dimensions: 207 x 152 x51.7mm

Applications
- Widely used in FTTH access network
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks

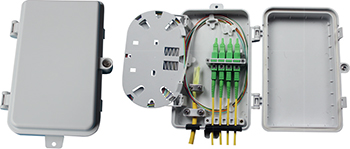

TB-X04 Termination Box
Features
- Can hold 1x4 PLC splitter
- Up to 4 drop cable
- Up to 4 SC adaptors
- 1 inlet port( for cables with max diameter 8mm)
- 4 outlet ports
- Wall mounting
- Protection class: IP 55
- ROHS compliance
- Dimensions: 210mmx140mmx40mm
- Re-usable
- UV resistant and weather proof
- ROHS compliance

  TB-C01 & TB-X04 Termination Boxes Pdf View
  TB-C01 & TB-X04 Termination Boxes Pdf Download
