Termination Panels / SwingSystem 1RU Fiber Termination Patch/Splice Panel


1RU Fiber Termination Patch/Splice Panel

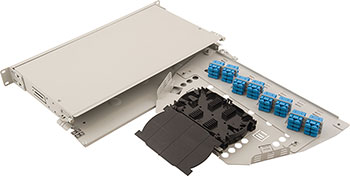

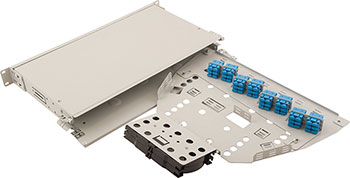

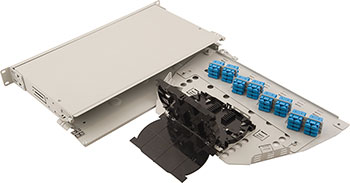

Alfafonet offers an innovative, high density swing panel has been designed to accept up to 48 fibres housed within a 1RU space. The tray fully manages the incoming fibres, pigtails and splices. The panel can swing by up to 120° to allow easy access during installation or rework with no disturbance of the existing cable or fibres. Angled adaptors route exiting patch cords directly into the cabinet side management. The panel can be assembled to swing in either direction, facilitating cable entry from either side.

Features
- Swing tray gives full access to adaptors
and fibres whilst managing incoming cable
- Angled adaptor plates direct patch cords to
side management behind openable front
- Suitable for up to 4 incoming cables
- Tray can be assembly left or right handed,
and recessed or set forward to ccommodate
different racks
- Accepts loose tube, distribution and
- Optional splice tray kit for on site
conversion

  Specifications
- Cold rolled steel
- Durable textured powder coat finish
available in black or white
- Universal 19/21" EIA/TIA rack
compatibility
- Standard density: up to 24 fiber,
High density: up to 48 fiber
- Front and back side mounting options
- Standard cable stub location is leftside
- Optional cable stub location is rear

  Swing System 1RU Fiber Termination Patch/Splice Panel Pdf View
  Swing System 1RU Fiber Termination Patch/Splice Panel Pdf Download
