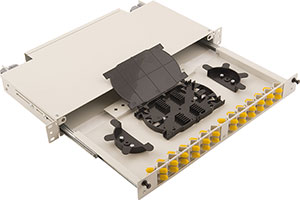

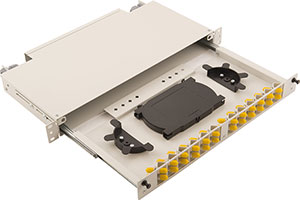

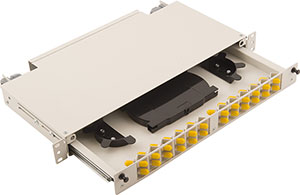

1RU Fiber Termination Patch/Splice Panel
The RailSystem Angled 1RU Fiber Termination Patch/Splice Panel is designed for professional
and advanced cable management with 45 degree adaptor interface. This solution allows for
easy access to the front patch cords as well as the splice trays and pigtails after being pulled
out. Mounted on telescopic runners to ensure the tray slides in and out with a smooth action.
Standard panels are available empty for complete field configuration, half-loaded with adaptor
plates for field termination and cable assembly installation, or stubbed with a factory-installed
cable assembly of a user specified length. The panel also offers multiple cable entry solutions,
up to 2 standard cable entry points for, loose tube, tight buffer, preterminated and steel tape
armoured cable. Each panel has integrated strength member tie positions.
Features
- Accepts loose tube, distribution and
pre terminated cables
- Up to 24 fibres in 1RU
- Changeable adaptor plates
- Pulled-open front pulled-out tray
- Optional splice tray kit for on site
conversion
to patch and splice panel
|
Specifications
- Cold Rolled Steel
- Durable textured powder coat finish
available in black or white
- Universal 19/21" EIA/TIA rack compatibility
- Front and back side mounting options
- Standard cable stub location is left/right side |
| |
|
|
