Termination Panels / PivotSystem 2RU Fiber Termination Patch/Splice Panel

2RU Fiber Termination Patch/Splice Panel

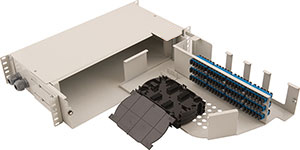

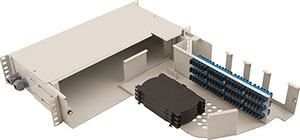

The PivotSystem 2RU Fiber Termination Patch/Splice Panel is designed for use as a rack mount interconnect point where termination and connectivity of up to 144 fibers is desired. This solution allows for easy access to the front patch cords as well as the splice trays and pigtails after being swing out. Standard panels are available empty for complete field configuration, half-loaded with adaptor plates for field termination and cable assembly installation, or stubbed with a factory-installed cable assembly of a user specified length.

Features
- Fits comfortably into new and existing
interconnect, cross-connect, customer
premise, and co-location environments
- Most common connector styles and
types available
- Compatible with industry standard
equipment frames
- Modular design
- Swing-open front swing-out tray
- Optional splice tray kit for on site
conversion to patch and splice panel
Specifications
- Aluminum Construction per ASTMB209
- Durable textured powder coat finish
available in black or white
- Universal 19/21" EIA/TIA rack compatibility
- Standard density: up to 72 fiber, High density: up to 144 fiber
- Front and back side mounting options
- Standard cable stub location is leftside
- Optional cable stub location is rear
