FTTH Series Outlets & Boxes / FH-208 & FH-308 Wall Outlets

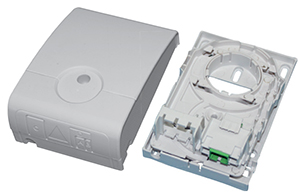

FH-208 Wall Outlet
Wall outlet FH-208 is a very compact wall outlet for maximum 2 FO connectors and 1 RJ-45 or RJ-11 Cu connector. The box provides mechanical protection for the fiber and permits appropriate access while maintaining the highest standards of fiber management. The box is typically used at the customer premises in the termination part of the access network.
Features
- Can be used flush mount or surface mount
- Compatible with almost any standard electricity box
- Compatible with 250 micron and 900 micron fiber
Innovative, removable fiber organizer system
facilitates an easy installation in the field types
- Fiber can be terminated using field installable
connectors, fusion splices
- Guaranteed minimum bending radius of 20mm
- One SC or duplex LC connector footprint
- Splice-through function allows moving the FO access
point to any other point in the premise
- Provide a clean upgrade path for your indoor wiring by
starting off with Cu and use the wall plug in combination with indoor Fi/Cu cabling
- Environmental friendly materials, low smoke zero halogen
- Cable entry points : back, bottom, side

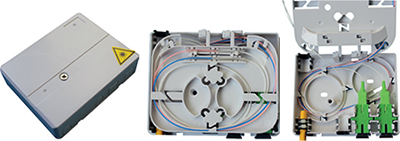

FH-308 Wall outlet

Features
- Ergonomically design, compact design,
- Ability to allow cables to enter from rear or bottom of the unit
- Removable cover for easy access
- Indoor use for Wall mounted unit used for small and large business premises
- Easily re-enter with a minimum of tools, saves time and cost
- Up to 4 cores(heat shink protective sleeve ) or 2 cores(3M mechanical splices)
- Can hold 2 SC simplex adaptor or 2 LC duplex adaptor
- Can be used for Blown Tube cable or common cables
- Three (3) cable ports, each port for one cable with maximum diameter Ø 10 mm
- ROHS compliance


  FH-208 & FH-308 Wall Outlets Pdf View
  FH-208 & FH-308 Wall Outlets Pdf Download
