FTTH Series Outlets & Boxes / FH-001 & FH-108 Wall Outlets

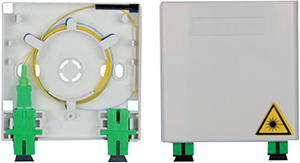

FH-001 Wall Outlet
Wall outlet FH-001 is designed for use in residential and business applications for the termination of up to 2 fibers. It can hold max 2 SC adaptors. The unit can be quickly installed within an office or house.
- Economic design
- Ability to allow cables to enter from both sides of the unit
- Removable cover for easy access
- Compact, low profile, wall mounted unit used for small and
large business premises
Technical Data
- Number of input cable ports: 4
- Maximum input cable diameter(mm):5mm
- Maximum Capacity: 2 fibres
- Dimension: 86 mm x 86 mm x19mm

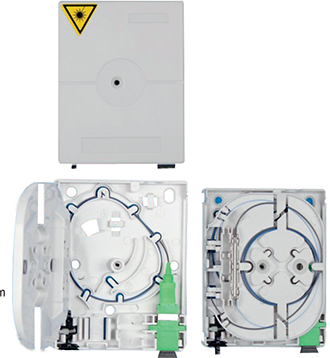

FH-108 Wall Outlet

Wall outlet FH-108 is a compact fiber terminal for use at the final fiber termination point in the customer premises. The FH-108 provides mechanical protection and managed fiber control in an attractive format suitable for use inside customer premises. A variety of possible fiber termination techniques are accommodated.
- Splicing to factory terminated pigtails
- Positive fiber management
- Direct termination with field installable connectors
- Attractive design for indoor use
- Can hold up to 4 mechanical splices and fusion splice
protectors and mechanical SC connectors can be integrated as well
- Splice cable to cable
- Compatible with 2 SC Simplex adaptors
- Multiple cable entry points (cable diameter ? 6mm)
- Can be wall mounted and mounted on wall boxes with fixation points of 60mm
  FH-001 & FH-108 Wall Outlets Pdf View
  FH-001 & FH-108 Wall Outlets Pdf Download
